The migration plugin is an experimental feature. Updates to the Cognite Toolkit are likely to introduce changes to the described commands and processes.
This guide walks data engineers through migrating CAD and point cloud 3D models from an asset-centric Cognite Data Fusion (CDF) project to data modeling instances.

​
Prerequisites

Migrating 3D models requires a CDF project-level feature flag that is not enabled by default. Contact your Cognite representative or Cognite Support to enable the 3D migration feature flag before you start.
Before migrating 3D models, complete the following:
  1. Request enablement of the 3D migration feature flag from Cognite Support
  2. Migrating assets
  3. Migrating data sets
If you have not completed some prerequisites, see Manually populate the CogniteMigration data model.

​
Required capabilities

The following capabilities are required to run cdf migrate 3d and cdf migrate 3d-mappings:

​
Migrating 3D models

Only CAD and point cloud 3D models can be migrated with this command. To migrate 360° images, see Migrating 360 images.
Run cdf migrate 3d to migrate the 3D model nodes, then cdf migrate 3d-mappings to create the asset mappings.
1

Run `cdf migrate 3d`

Run the command in interactive mode to select which 3D models to migrate, or pass the options as arguments. See cdf migrate 3d --help.
If you see the error You need to have the 3D migration feature flag enabled..., enable the 3D migration feature flag in the prerequisites above.
2

Run `cdf migrate 3d-mappings`

After the models are migrated, migrate the 3D asset mappings. See Migrating 3D asset mappings.
3

Verify the migration

Confirm that Cognite3DModel and Cognite3DRevision nodes exist, and that mappings created Cognite3DObject and CogniteCADNode nodes. See How the migration works.

​
Migrating 3D asset mappings

After migrating the 3D models, run the asset mappings command in interactive mode:
The command prompts you to select which 3D model to migrate mappings for, along with other options. You can also pass all options as command-line arguments. See cdf migrate 3d-mappings --help for details. When you migrate 3D asset mappings, you must select two instance spaces:
  • One for CogniteCADNode nodes — the contextualized CAD nodes from the model
  • One for Cognite3DObject nodes — the nodes that connect assets to those CAD nodes
You can use the same instance space for both, or separate spaces if you want different access control or ownership.

​
How the migration works

The Cognite Toolkit looks up the instance space for the data set the 3D model belongs to, then creates a 3D model node in that space. For example, a 3D model governed through the asset-centric model:

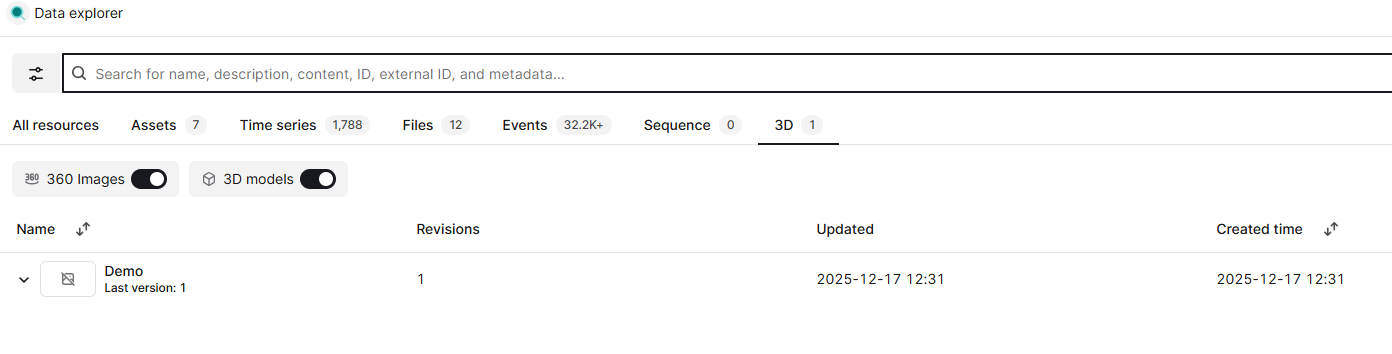

A 3D model governed through the asset-centric model before migration.
After migrating the 3D model and its asset mappings, the following nodes exist in the data modeling-based CDF project in the CogniteCore model:

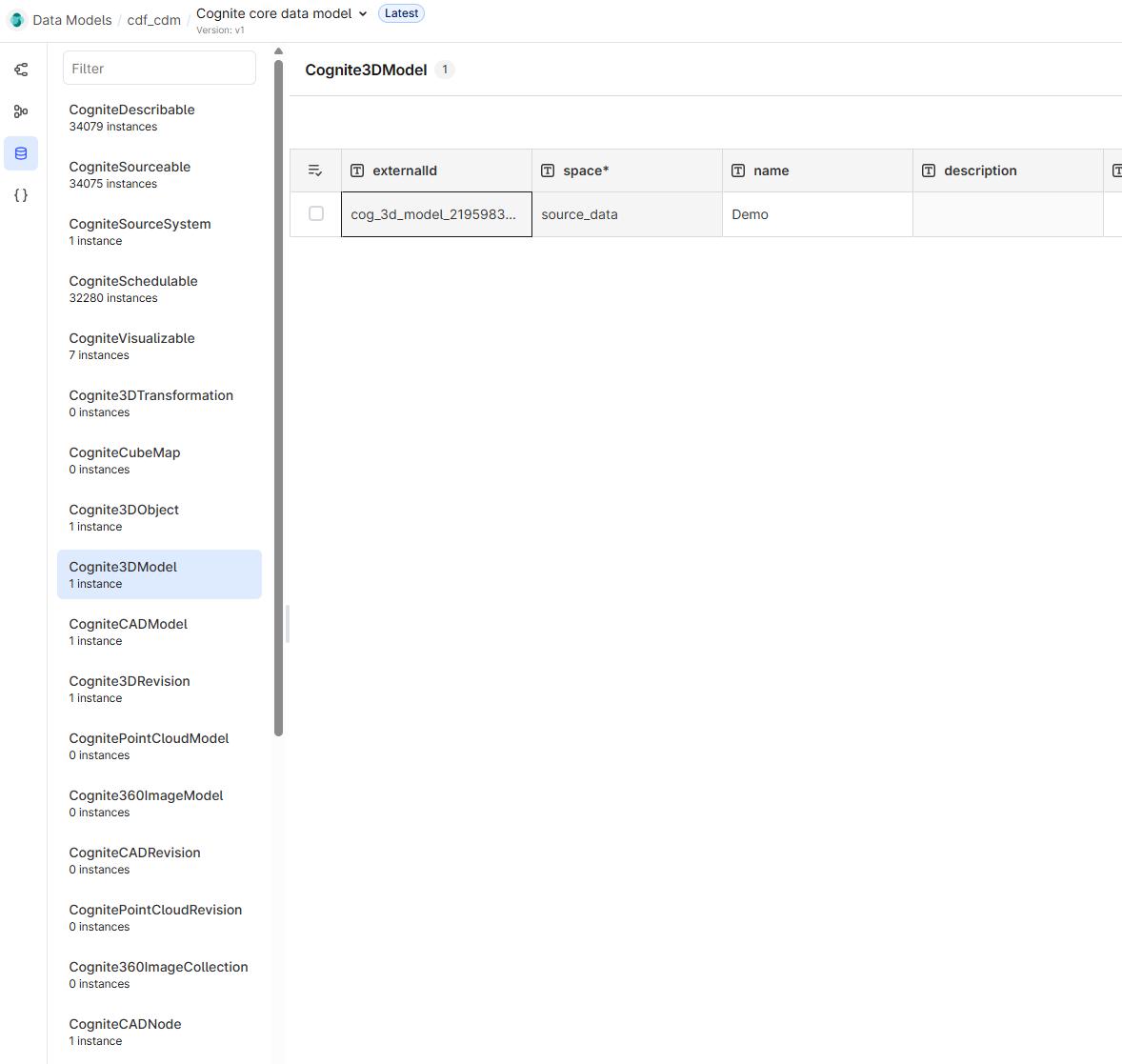

Migrated 3D model with Cognite3DModel, Cognite3DRevision, Cognite3DObject, and CogniteCADNode nodes in the CogniteCore model.
cdf migrate 3d creates the Cognite3DModel and Cognite3DRevision nodes. cdf migrate 3d-mappings creates the Cognite3DObject and CogniteCADNode nodes, and updates the asset with a direct relation reference to the Cognite3DObject node.

​
What cdf migrate 3d does

When you run cdf migrate 3d, the Cognite Toolkit performs the following steps:
1

Download the selected 3D models

The Cognite Toolkit reads the 3D models from the /3d/models endpoint for each selected model.
2

Create 3D model migration request

For each 3D model, the Cognite Toolkit creates a migration request. This includes looking up the instance space for the data set using the SpaceSource view in the CogniteMigration data model.
3

Call 3D model migration endpoint

The Cognite Toolkit calls a non-public migration endpoint for each 3D model with the created request. This endpoint is intended only for use by the migration plugin.

​
What cdf migrate 3d-mappings does

When you run cdf migrate 3d-mappings, the Cognite Toolkit performs the following steps:
1

Download the selected 3D model mappings

The Cognite Toolkit uses the /3d/models/{modelId}/revisions/{revisionId}/mappings/list endpoint to download all asset-centric mappings for the selected 3D models.
2

Convert asset-centric mappings to data modeling mappings

The Cognite Toolkit looks up the assetId with the assetInstanceId using the InstanceSource view in the CogniteMigration data model.
3

Create the data modeling mappings

The Cognite Toolkit creates the mappings using the /3d/models/{modelId}/revisions/{revisionId}/mappings endpoint.

​
