Analyze your data

With Asset Data Insight you can create boards for any piece of equipment, system, or platform. Boards give you real-time understanding of operations for a piece of equipment.

Create charts​

You can quickly create and save a chart for any asset.

  • Immediately access the most relevant time series for an asset.
  • Add any time series to the chart, as long as the time series is in Cognite Data Fusion.
  • Group y-axes by units, or collapse the y-axes entirely.

Change date range​

Select a chart and click Calendar to set a date range.

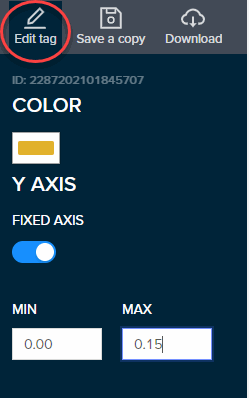

Change the y-axis​

You can set minimum and maximum values for the y-axis.

  1. Select a time series and click Edit tag.
  2. Activate Fixed Axis and enter new values in the Min and Max fields.
  3. Click Done.

Share a chart​

Make your chart visible to others by setting Permission to Public in the Chart details.

Download a chart​

  1. Select a chart and click Download.
  2. Set the date range and granularity in the Export chart data window.
  3. Select Format timestamp to use the U.S date format. Clear to use Epock time format.
  4. Click the delimiter you want to use to separate data fields.
  5. Download the chart as a file in CSV format or as an image in SVG format.

See also Convert Epoch to GMT time in MS Excel

Save a chart​

You must enter a name for the chart before you can save a chart.

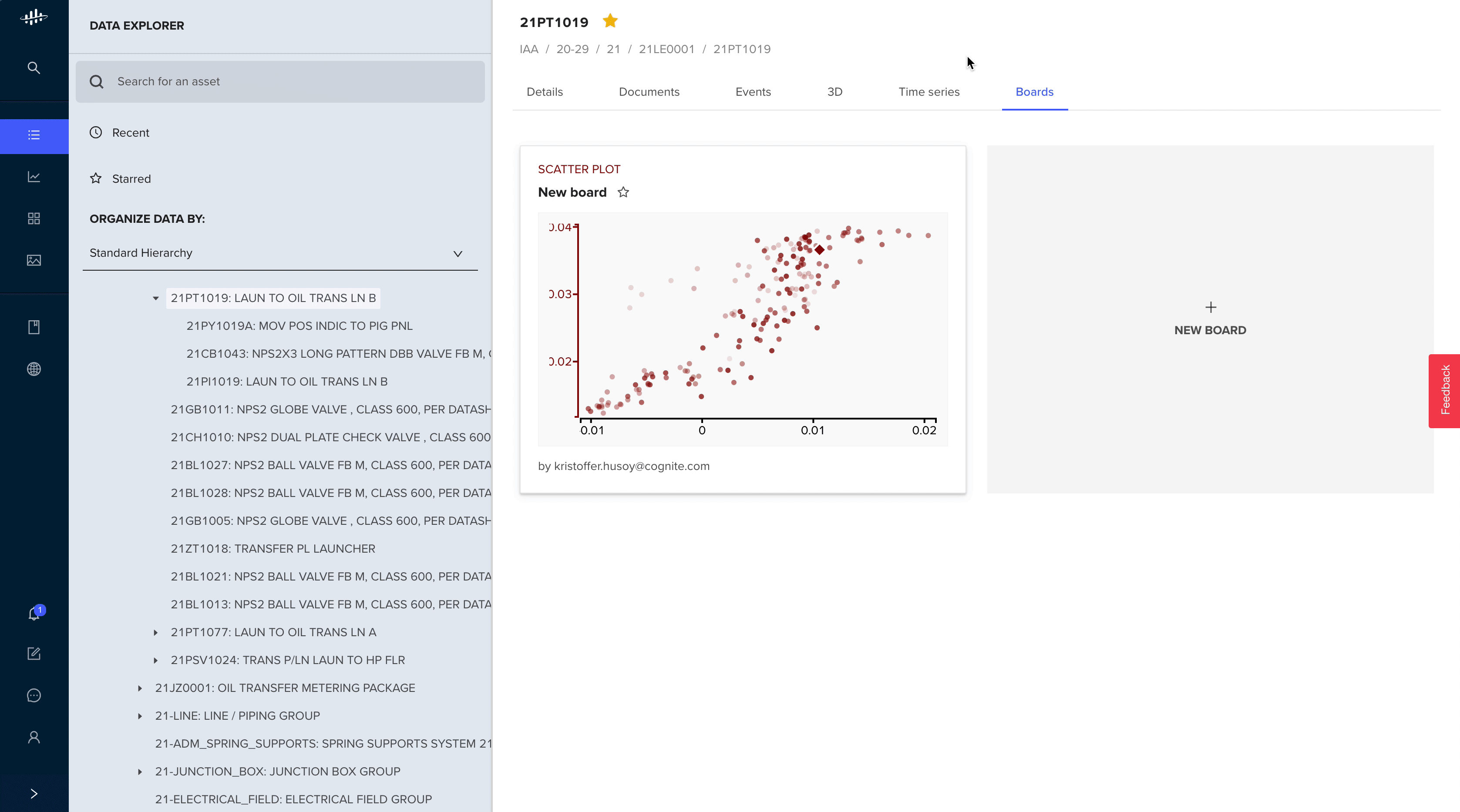

Create scatter plots​

You can quickly create and save a scatter plot for any asset.

  • Immediately access the most relevant time series for an asset.
  • Add any time series to the scatter plot, as long as the time series is in Cognite Data Fusion.
  • Add multiple groups of time series to the scatter plot.
  • Add custom data by inputting plot pairs or uploading CSV files.

Embed external dashboards from Power BI or Grafana​

Power BI and Grafana are dashboarding tools which support advanced custom dashboards. Through embedding you get access to these dashboards in the same place where you investigate the equipment history, documents, etc.

Share boards with your colleagues​

Often, you make boards that are useful for your colleagues to see as well when they investigate. Sharing of boards lets your entire team benefit from the boards. You can collaborate better because you see the same data.
