What's new in Cognite BestDay?
Version 2.0 - February 8, 2022
We're very excited to present BestDay's all-new deviation and deferment handling workflow. Detect production deviations for your overall production throughput - your total hydrocarbon production - on a daily basis, analyze and investigate the data using multiple new panels on the KPI page, then classify and group deviations as you see best fit to transition into BestDay deferments. When you have handled the deviations, you can export and ingest the BestDay deferments back into your source system.
The Production panel on the KPI dashboard visualizes actual production, deferments, and identified production deviations in a stacked bar chart, as well as your BestDay capacity now based upon daily volume calculations of total hydrocarbon products for your system, subsystem, and even for your collections of favorite wells. Investigate and discover the optimization potential by selecting all or only the hydrocarbon products you want to focus on, then hover over the chart to see the details. Dive into further details by scrolling down to the Breakdown per product chart.
The BestDay capacity and production deviation calculations are now based on total hydrocarbon production.
This means that the BestDay capacity and deviation volumes include the well main hydrocarbon product (such as oil for an oil well) and the hydrocarbon side-products (such as associated gas for an oil well) in one single Best Day capacity daily number per well.
The BestDay daily identified production deviations volumes exclude deferment volumes recorded in the source system on the day of the BestDay capacity calculation. This means the source deferment events do not need to be attached to BestDay deviations as these are two separate volumes.
You can verify the production and deferment volumes available in the system at the time of the BestDay capacity calculation in the detailed description of the BestDay daily production deviations. This means that if a deferment event and volume have been added in the source system after the BestDay calculation, you can check the values at the time of the calculation.
When you are ready to handle the deviations, you can classify and group deviations for further investigation or ignore deviations that you disagree with.

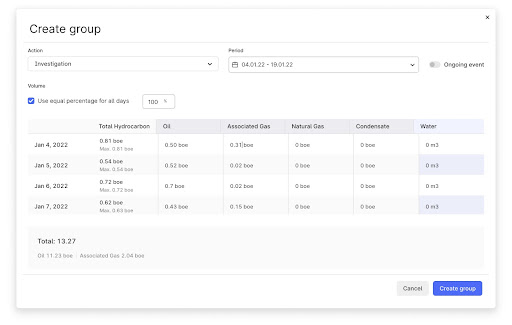

Create deviation groups
Deviation grouping is used to group daily identified production deviations, classify and document deviation events, and transition these into BestDay deferments. Drill down to the well you want to focus on. Then create deviations groups from the Production chart by selecting and clicking one or more days in the Production bar chart or selecting Create group in the Deviations side panel. The deviations are now automatically transitioned from Detected to Investigation mode. In the dialog that opens, you select to Investigate or Ignore deviations, and this opens the Create group window:
In the Create group window, the deviations are automatically classified with the Investigation status, but you can select a different classification under Actions.
Turn on Ongoing events to automatically add new days to this group. BestDay keeps adding days until you turn off this switch or production is overperforming. Note that this option is only available when the last day with a deviation is included in the time period. This means you can't use this for historical deviations.
Insert a value in Use equal percentage for all days to modify the volumes by percentage or clear this field to manually tweak the values in percentage or absolute numbers for each day. Use this if not all of the volume applies as a deviation or to split the numbers on different groups.
BestDay keeps adding the exact percent of daily detected deviation volume for each new day in an ongoing event. For example, suppose you select 70% of the volume of the last day when you create your ongoing event. In that case, only 70% of the new days' deviation volumes are automatically added to this ongoing deferment.
Select Create group.
On the Classification tab, you classify the deviation with the same rules that are used in your source system for deferment classification. The deviation card is set to 100% when the required fields are filled in.
The Activity and Comments tab logs all comments you have entered and all actions you've made on a deviation.
Select Save to keep your values but continue to work on this card later or, if you have filled out all mandatory fields, select Create deferment to transition the deviation to a BestDay deferment. Notice that the status now updates to Explained.
If you disagree with the BestDay calculation, you can ignore the deviation volume parts that you think are wrong by creating a group and setting the group's status to Ignore.
- In the Create group window, select Ignore under Actions, and add a reason and a comment for ignoring the deviation.
- Turn on Ongoing events to automatically add new days to this group. BestDay keeps adding days until you turn off this switch or production is overperforming. Note that this option is only available when the last day with a deviation is included in the time period. This means you can not use this for historical deviations.
- Select Create group to create a card on the Deviations side panel with the deviations listed as Ignored.
Export deferments to CSV
Click the Export button in the top right corner to add source deferments and BestDay deferments to a CSV file you can ingest into your source system for further handling and reporting.
The Deviations side panel
The new cards on the Deviations side panel help you quickly find the key information about all deviations in any state. On the front page of a card, you'll see the amount of volume attributed to a group and the current status for the deviation. Use the filters to find the deviations you want to work with, then click a card to see more details. On the Allocation tab, you'll see how the volume of this deviation is distributed to different groups, and on the Initial data tab, you'll see the initial volumes for a specific day prior to any user modifications. The initial data is the input used in the BestDay calculations. The Activity and Comments tab unifies the comments entered for the deviation group and a log with all changes made to the deviation group.
Additional panels on the KPI dashboard
To gain insights into your system's total deviation and deferment handling, track the BestDay value, and get a bird's eye view of the volume handling and interactions with deviations and deferments, check out the new or improved panels on the KPI dashboard.
The BestDay KPI values are updated once per day (at night). If you create a Best Day deferment, you will not see the impact on the KPI until the next day.
Breakdown per product - The number of deviations is listed for each hydrocarbon product under Deviations.
BestDay deviation volume and classification - The blue line shows daily or monthly deviation volumes for each well in a system, subsystem, or collection, i.e., the total underperformance for a system level. The green line shows the percentage of deviations that have been classified as deferments. Investigate the discrepancy between these lines to optimize deviation interactions.
Deviations per status - See the daily or monthly percentage split per deviation status and the volume this represents.
Mean time to recover - The mean duration from start to end date for source and BestDay deferments to help you understand the size of events in a system and how long they affect production to identify challenges and speed up recovery time.
Active deferments - This shows the number of actual deferment events from the source system and created from BestDay based on deviations from the BestDay calculations.
Mean reaction time - This shows the time span from the moment a deviation is detected until it is reacted upon to help you be proactive on major events. The graph does not show events that you are not interacting with.
Version 1.11 - November 15, 2021
Shift between assets
Select the asset you want to work with using the new dialog box that appears when you sign in to BestDay. The asset dropdown list shows all the assets you have access to.
When you want to work with a different asset, click the asset name under the BestDay logo in the top left corner and select another asset from the list.

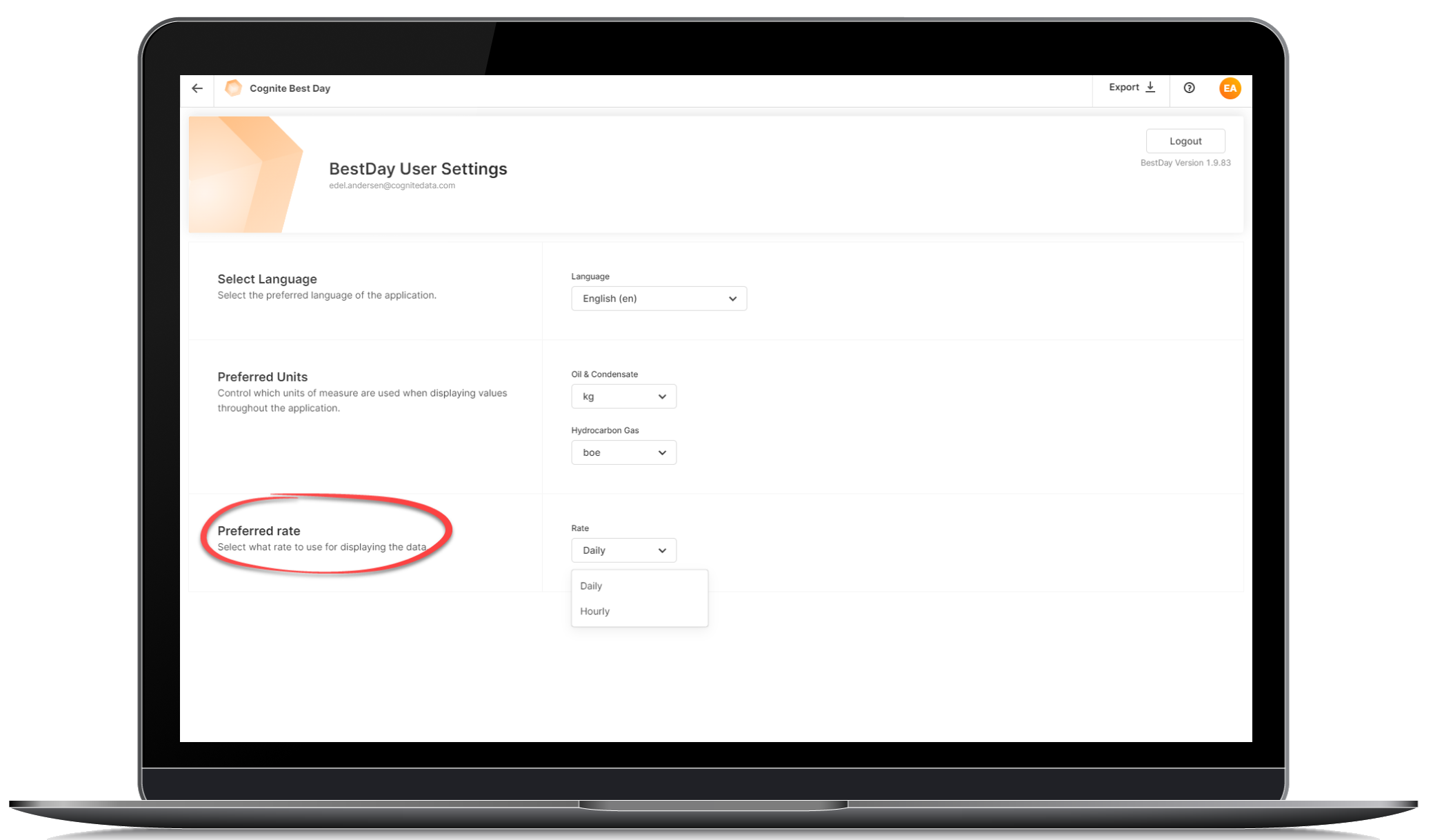

View daily and hourly rates
To give you even more details about the data displayed in BestDay, we've added time rates on all measurement units across the different BestDay views. You can select to show daily or hourly rates with the new Preferred rate field on the Profile page. We've also made sure BestDay keeps this setting and all other settings on this page if you use BestDay on different browsers and computers.
Group favorite wells into Collections
We've expanded and enhanced how your favorite wells are grouped with the new Collections option. Instead of having a list of favorites, you can now group wells into one or several collections. This is how to create a collection:
Click Collections in the System selector to open the Add new collection window.
Give a unique and descriptive name of the collection.
Add the well you want to have as favorites.
Click Create new collection.
Keep your user preferences
When you open BestDay, you'll notice that you'll find the application just as you left it! BestDay now keeps all settings and filters you have added to the different views, such as open or closed sidebars, time range, and production settings.
Version 1.10 - November 2, 2021
In this release of BestDay, we've made sure the preferred settings you have selected on the Profile page are kept even when you're using BestDay across different browsers and computers.
Notice also how the breadcrumb path at the top of each page, which helps you keep track of your location, now automatically adjusts to the size of the screen you're working on.
Version 1.9 - October 1, 2021
This version of BestDay is all about making it easier for you to navigate and find the data you are looking for. The BestDay views, KPI dashboard, Deep dive, and Well summary are relocated and displayed as tabs closer to the working canvas enabling swift navigation between these. Notice also that you can close the System selector pane by clicking the X icon, and the Export button is now easy to spot in the top bar.
Version 1.8 - September 21, 2021
When you want to further explore and analyze trends from BestDay, you can now easily copy the external ID for a production trend and use this to find the same trend/time series in Cognite Data Fusion or Cognite Charts. Simply click the drop-down for a product on the Deep Dive page and click the copy icon.
This version also includes some minor tweaks made to the overall user interface, and we've taken care of some minor issues.
Version 1.7 - June 21, 2021

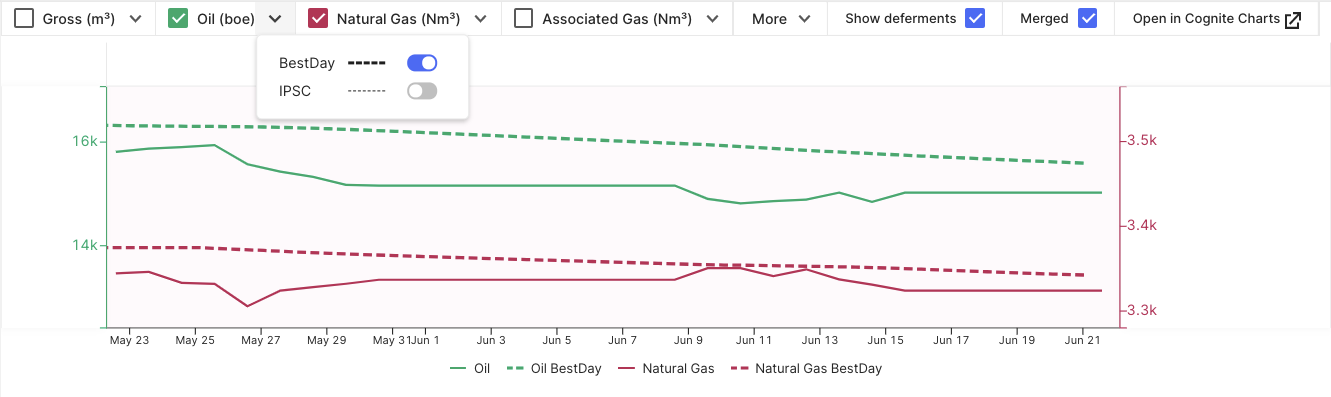

BestDay keeps expanding the trend options, and for well deep-dives, you can now trend a set of production rates, for instance, from different measuring points or a combination of live measurements and allocated production. The most frequent measurement is used for BestDay capacity calculation and deviation detection.
We've also grouped all trends for a product on the deep-dive pages. You use the dropdown lists to select the trends you want to visualize. Notice that a product’s production and target rates are represented by one shared Y-axis, making comparison very easy. You'll also find that systems and subsystems deep-dives now have a separate Y-axis per product.
Version 1.6 - June 10, 2021
This version of BestDay focuses on giving you a bird's eye overview of production performance and some new options to find areas that need further investigation and understanding quickly and easy.
When you open BestDay, you are now directed to the new KPI Dashboard page. Here you'll see all your key performance indicators for your selected system level. Below, you'll find different panels where you can investigate the details.
These are the main KPI cards:
Gross production shows the production of all liquids, including water and impurities.
Hydrocarbon shows the sum of all hydrocarbon production.
Deferments show deferment volume per day.
Deviations show deviation volume per day and number of deviations. You can choose between seeing total sums or the daily averages for a set time range.
The Breakdown by product panel shows values for actual production, the BestDay capacity estimation and other capacity references, deferments, and deviations. Showing all products is the default setting, but you can select products with the checkboxes at the top of the panel.
Next is the Production bar chart, which visualizes actual production. You can compare the production capacity to the BestDay data-driven capacity and other capacity references, such as IPSC. You can also select to see the deviations between the actual and estimated production. This is illustrated with a grey shaded area on the chart. Show or hide a box with daily details with Show values on hover.
Scroll further to see the Deviations and Deferments volume lined up side by side. A gap between the two indicates a reason for investigating the optimization potential. Click Split by status count to display the amount of detected and ignored deviations and planned and unplanned deferments. Notice that both the Deviation and Deferments side panels are available on the right side of the page to give you easy access to more details, such as event distributions.
The last panel displays Production efficiency per product. The efficiency calculation is (Actual production/Capacity)x100%. By default, the BestDay data-driven capacity is used. You can change this with the dropdown list per product located at the top of the panel.

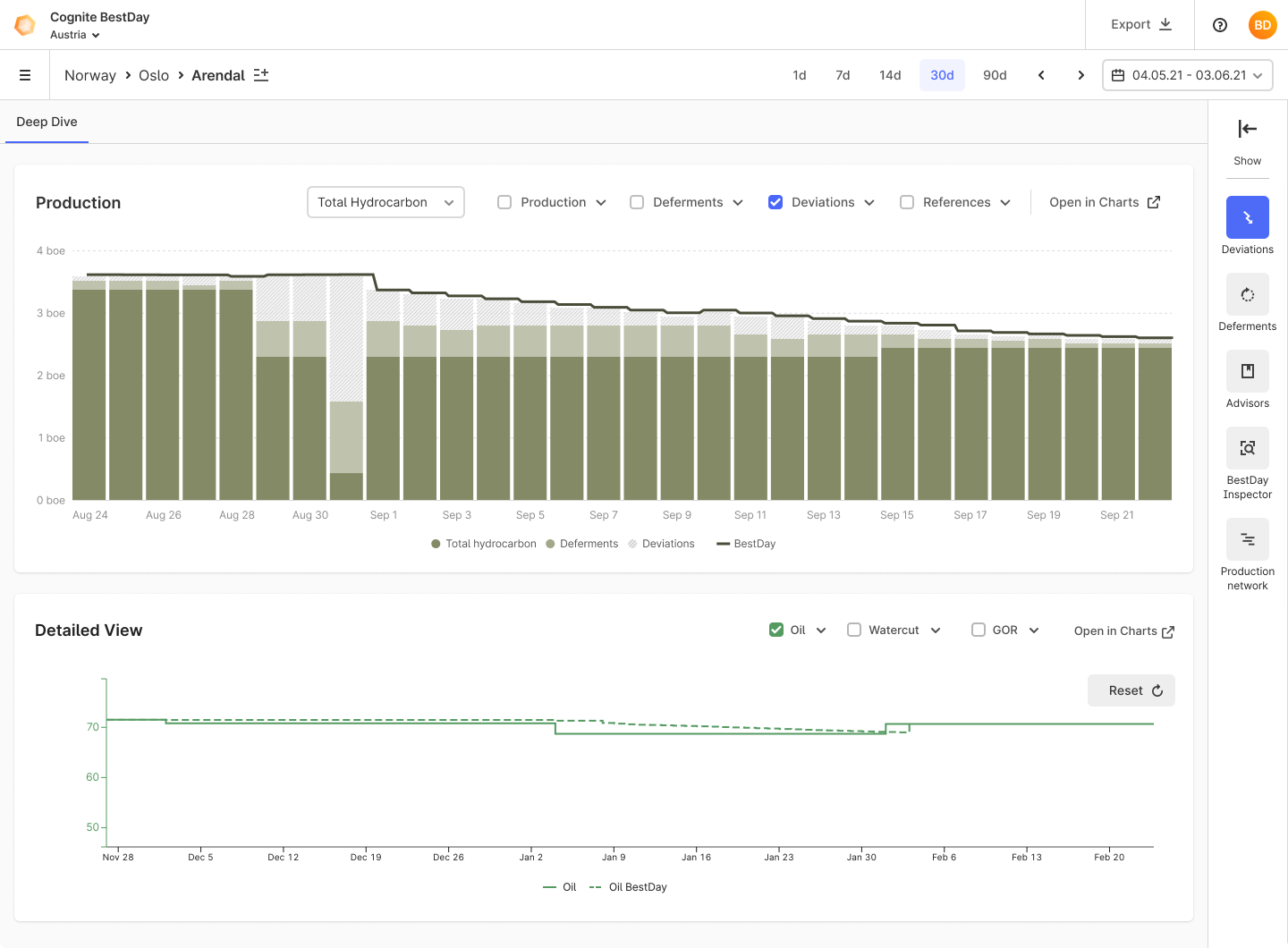

When you want to dive into the nitty-gritty details, use the new link to Cognite Charts, where you can further explore, trend, troubleshoot, and perform root cause analysis of data and deviations and also share the findings with your co-workers.
You'll find the link to Cognite Charts right above the graphs per Deep dive page.

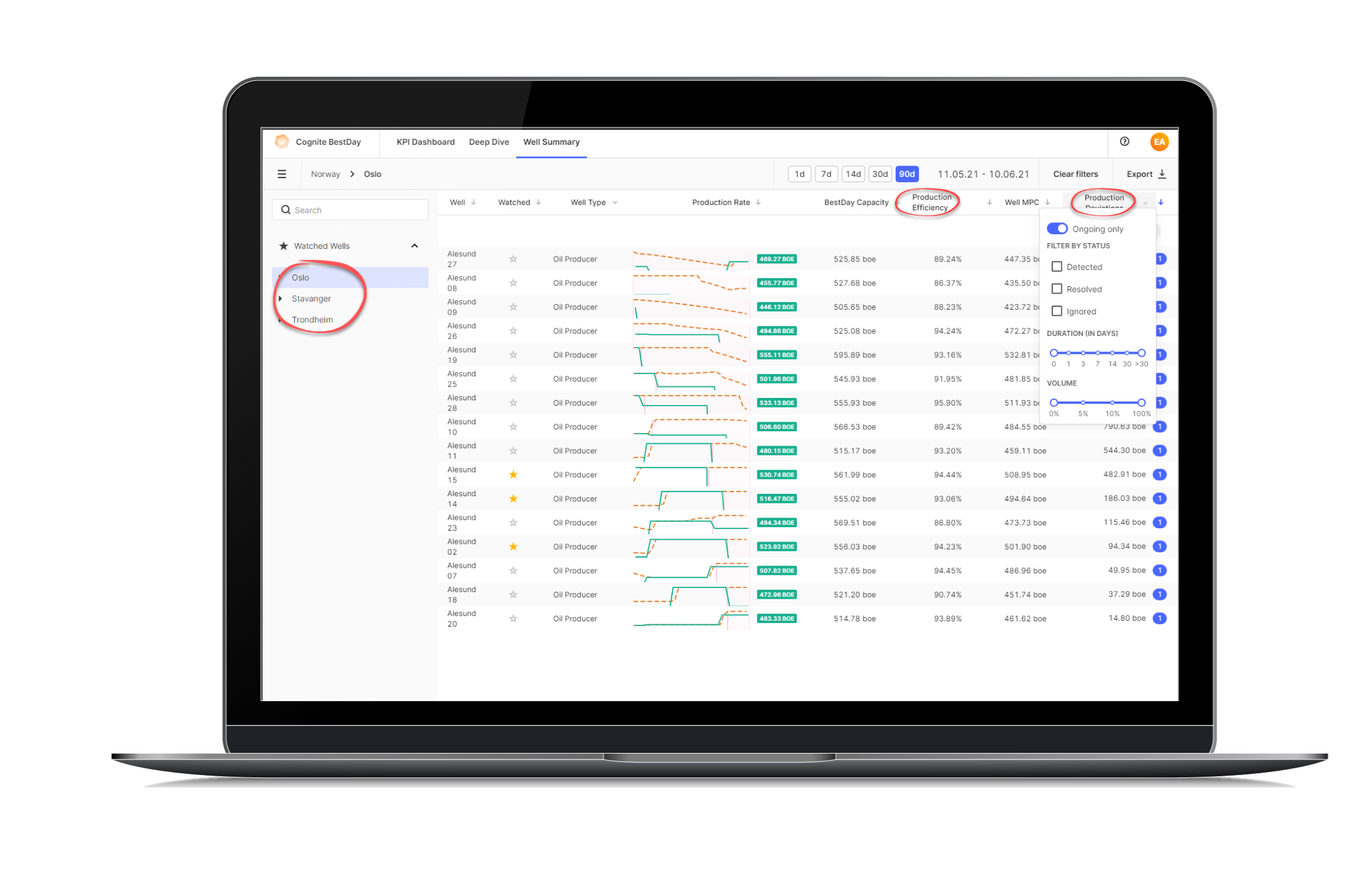

Broaden your understanding and prioritize between wells on the Well summary page with a new aggregated view of the summary. This is now available for the entire field/branch/country, per system and subsystem. Then filter further by sorting on the new Production efficiency column to find the area with the highest optimization potential. You can use new advanced options under the Production deviations column for further filtering; for instance, only show ongoing detected deviations with a volume above 10%.
Note also that all trends for a product are now grouped in the well chart view. Use the dropdown lists to select the trends you want to visualize.
Get the overview of the production flow from a selected well to the export point with the Network tree that you find as a side panel when you have selected a well. Traverse up and down the network, view network nodes such as gathering points or measuring points, or jump over to other wells and facilities.
Version 1.5 - May 20, 2021
We've added a wide range of options for sorting and filtering deferments and deviations. On the Derferments and Deviations side panels, just click the Sort list to sort according to newest or oldest item, largest and lowest volume, or longest and shortest duration. Click Filter on deviations to filter by status, duration, or volume, and click Filter on deferments to filter by type, event, duration, volume, or choke.
We've also added a histogram for all deferment and deviation events to visualize event distribution. Deferment events are categorized as event type, choke, volume, and duration. Deviation events are categorized as status, volume, and duration. Note that the volume ranges are sorted according to less than 5% of BestDay capacity, 5-10% of BestDay capacity, and more than 10% of BestDay capacity.
Version 1.4 - April 20, 2021

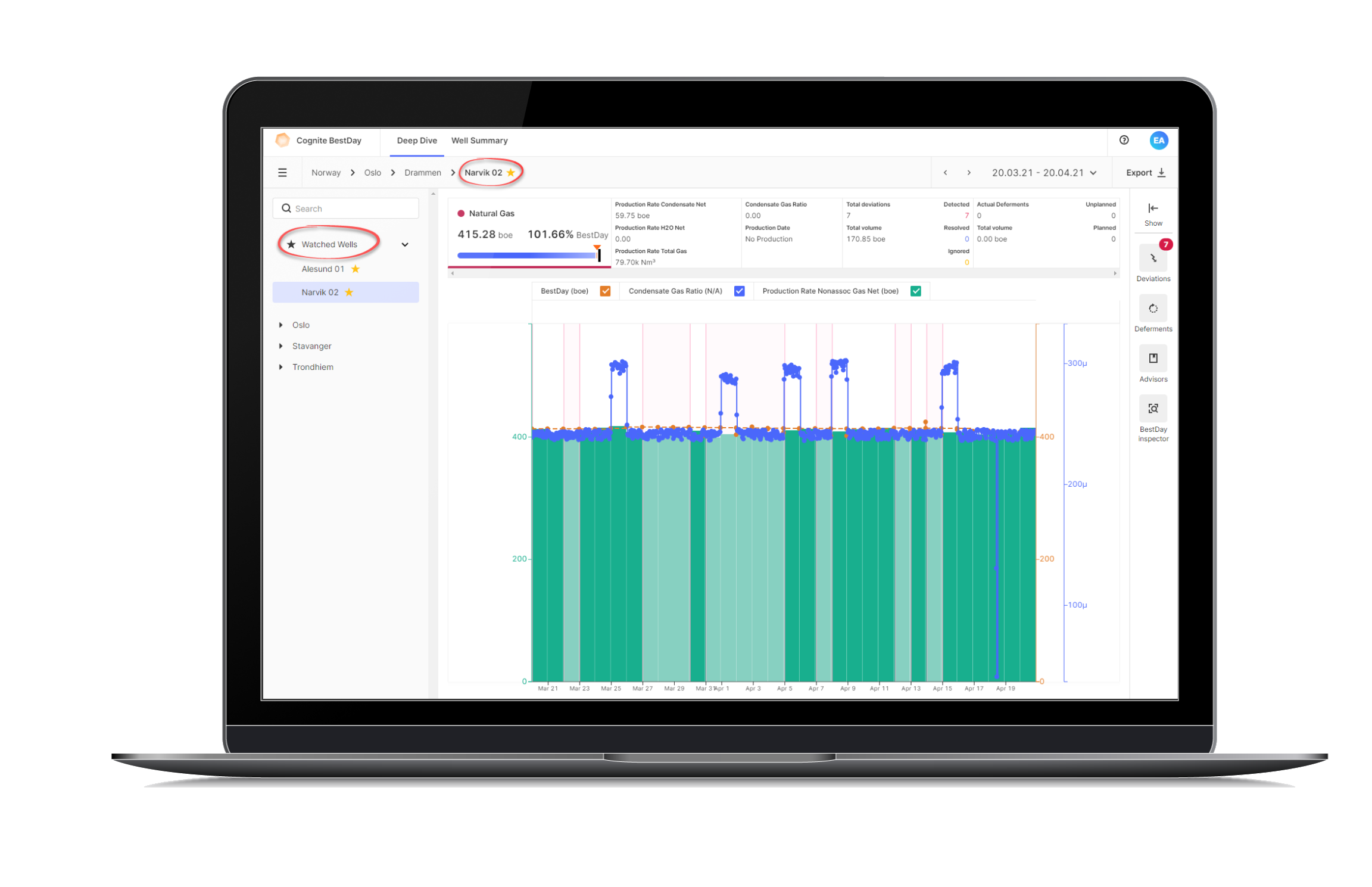

Find your favorite wells and add them to the Watched Wells collection for easy access from anywhere. Simply click the star icon next to a well on the Well Summary page or on the well path list on the Deep Dive page to add to the collection.
Version 1.3.2 - April 12, 2021
The Export option in BestDay keeps improving! If you have changed the measurement units for production and deferment data according to your preferences, these units are now included in the exported spreadsheet.
You set your preferred measurement units on the Profile page.
Version 1.3.1 - March 25, 2021
You'll experience a variety of minor improvements made across several areas in this version of BestDay. Here's a selection - special characters are displayed correctly in Excel after export from BestDay, charts load faster when you switch between wells, and you will find that y-axes with the same unit are aligned automatically on the Well Deep dive page to make it easier to compare values directly.
Version 1.3 - March 19, 2021
Check how easy you now can set your preferred measurement units for all hydrocarbon liquid and hydrocarbon gas values throughout BestDay on the refurbished Profile page. Instead of going through the whole list of units per product, set the measurement units with two simple steps.
You'll also notice we have added the recycle bin icon to each Advisor card to make it apparent and easy to delete advisors. If an advisor is added to several assets, choose to delete only current or all assets.
Note also that you now find any deleted comments to deviations in the Deviation log.
Version 1.2 - March 11, 2021
Add advisors to systems, subsystems, and to all or selected wells in the Advisors view in BestDay to fast-track root cause analysis.
You'll also notice a few other improvements, the References option for charts is only visible when references are available, and the Export button is always displayed as active.
Version 1.1 - March 5, 2021
Export all data displayed and produced in BestDay with the Export button into a neatly sorted spreadsheet. Set the date range (recommended max. 1 year) and select the data you want to export, such as production data, deferments, deviations, and BestDay predictions. The exported .cvs files are sorted by date and show each data point with all decimals per product. The standard layout conforms to other tools' typical input format and makes it easy to analyze further the data in other tools, such as MS Excel and PowerBI.
Version 1.0 - February 19, 2021
The BestDay team keeps focusing on making it easy for you to find and see the data you need in your daily operations.

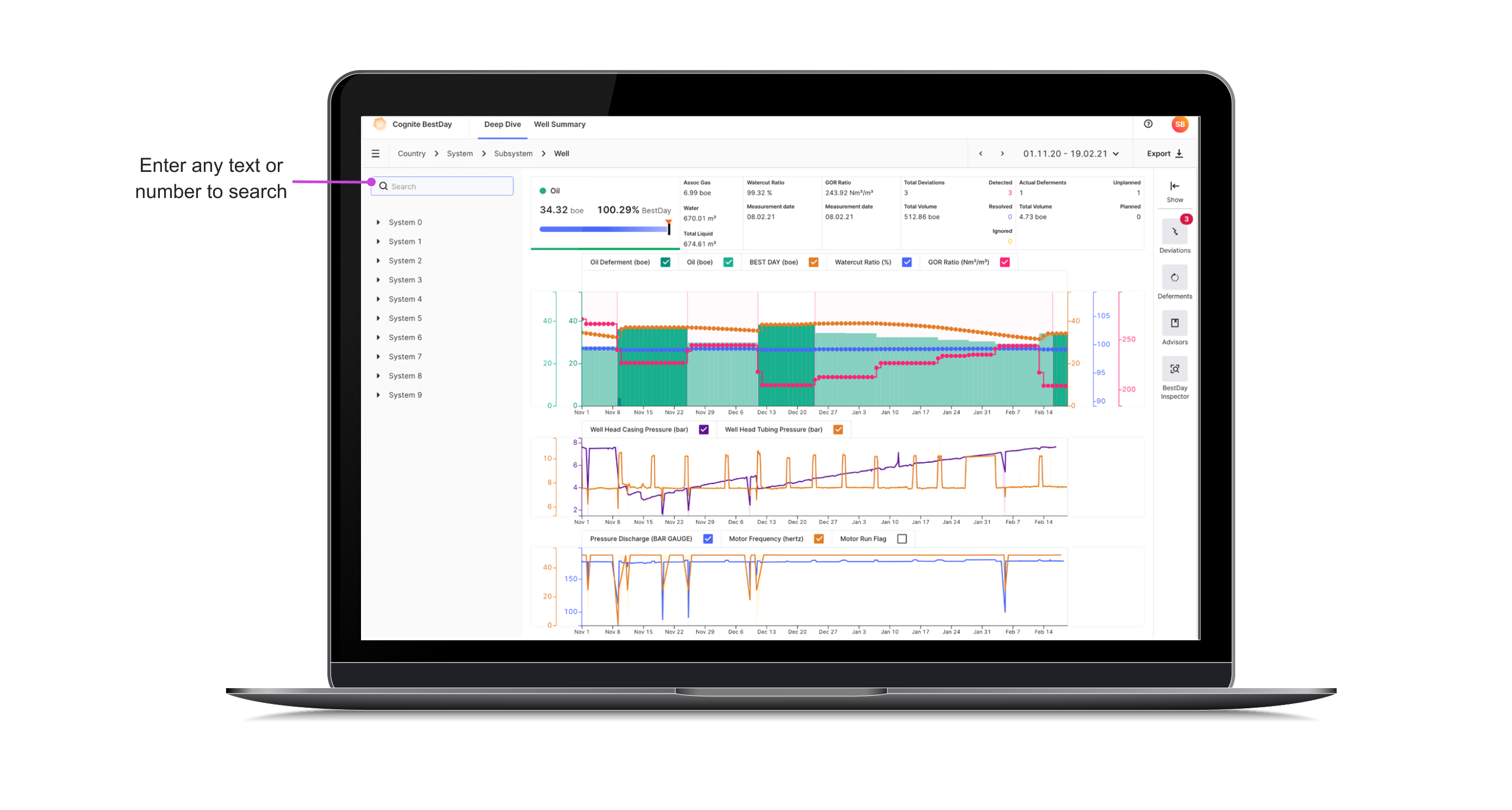

Find and explore wells, subsystems, or systems from anywhere in BestDay with the new Search field in the System selector. You can use both letters and numbers in the search, and the results are filtered according to asset.
We have improved the data visualization. The data points for trends representing averages over a time period have precise forward step presentation, and the revamped Deferments panel gives a clear overview of actual and scheduled deferments.
Want to read more about the recent BestDay updates or learn more? Click the Help icon located in the top right corner to directly access the BestDay Changelog, Cognite Docs, Cognite Learn, and Cognite Support.
Version 0.12 - February 10, 2021
Welcome to the BestDay changelog!
This version of BestDay is all about keeping you orientated as you navigate around the BestDay application. The new path located above the Well Deepdive page keeps track of your location, and you can quickly go back to previous steps. You can also easily switch between assets with the expanding subsystem list on the application's left side.
You'll also find a more aligned use of decimal numbers across BestDay. 2 decimal digits are used as standard but if you need even more accuracy, hover over a field where the tooltip displays 4 decimal digits.
The BestDay team has also fixed some bugs, such as flawless reloading of charts when you toggle on and off a trend.
